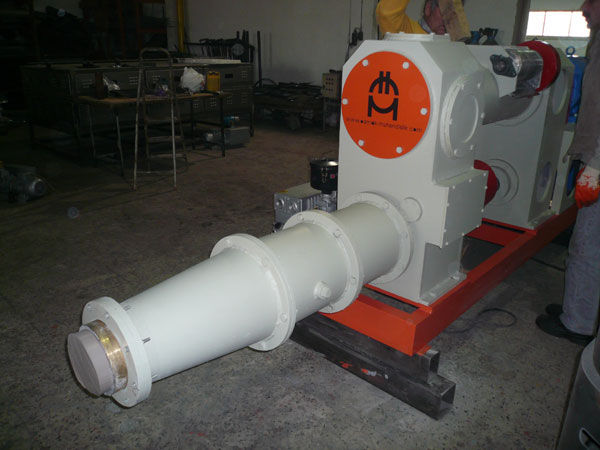

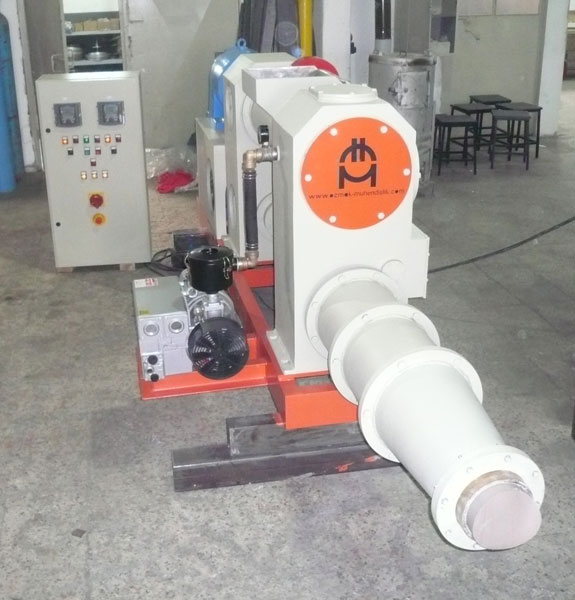

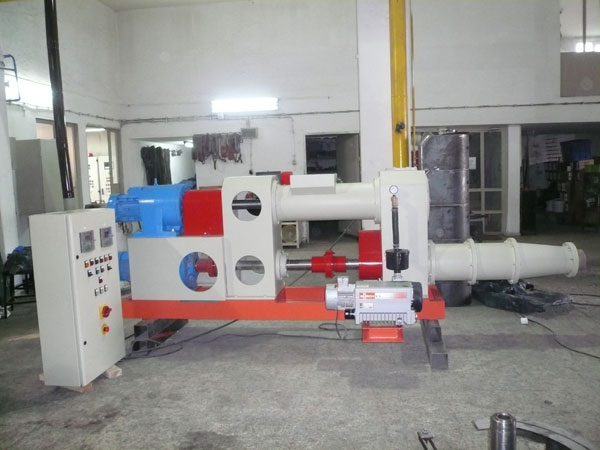

The plasticity of raw material is an important operation parameter in plastic forming which constitutes the major part of porcelain production. For the formation of plasticity, clay must have no air in it. For this purpose, the cakes taken from the filter presses are first minced under vacuum and consecutively pressed into cylinder with an auger and deaerated clay strips are extruded.



TECHNICAL SPECIFICATIONS

Order Code	Cylinder Diameter (mm)	Solid Pug Diameter (mm)	Capacity (kg/h)	Motor Power (kW)	Width (mm)	Length (mm)	Height (mm)	Weight (kg)
TVP 150	150	90	400	2,2 – 4	600	1900	700	900
TVP 150/250	250	160	400	4	600	1900	700	950
TVP 250	250	160	2000	11	780	3200	1500	2600
TVP 250/350	350	220	2000	11	780	3200	1500	2700
TVP 350	350	220	4000	18,5	1100	4000	1500	3300
