CERAMICS - PORCELAIN

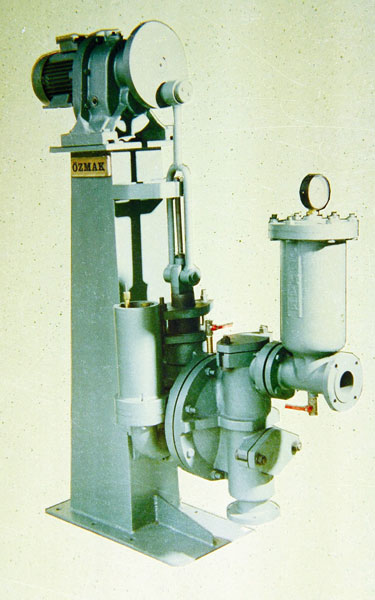

DIAPHRAGM PUMPS


The diaphragm pumps are used to fill filter presses and / or pressurizing and conveying the slips within the factory.

TECHNICAL SPECIFICATIONS

Order Code Piston Diameter (mm) Number of Strokes (rpm) Stroke of Piston (kW) Capacity (m3/h) Max. Operating Pressure (bar) Motor Power (kW) Weight (kg)
TDP 050 50 40 160 0,60 12 1,5 500
TDP 065 65 40 165 0,95 12 2 550
TDP 080 80 36 165 1,50 12 3 700
TDP 090 90 36 180 2,10 12 4 730
